Plans/Blueprints for luthier, Style Red Special Original (Brian May) guitar (vectorized 2022)

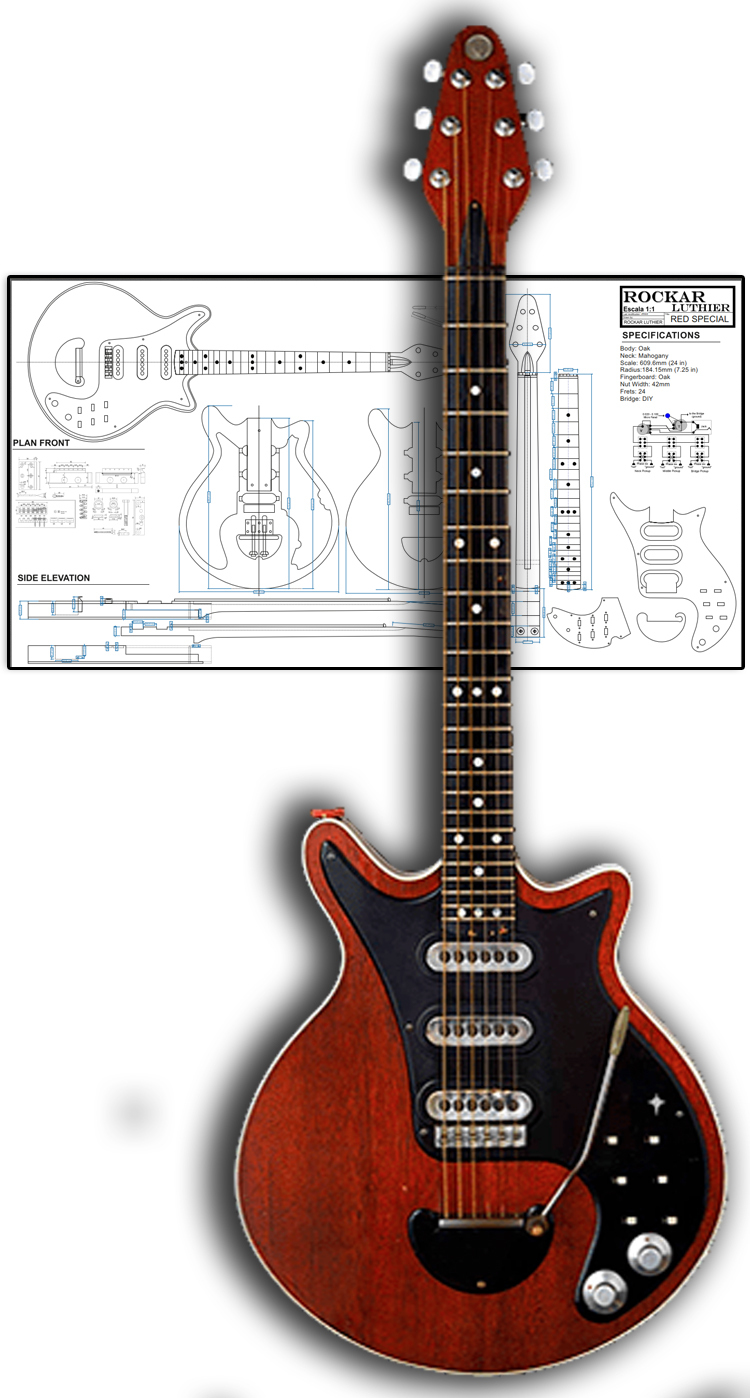

Drawing for luthier, vectorized Style Red Special Original guitar, full scale ready to print. 3 files are download, the plan with all the measurements in pdf, a template in pdf and a template in editable cdr format.

Also a zip with photos of the wiring and a text file explaining the assembly of the guitar
